BoxCaster Pro Live Streaming Encoder

Complete your professional streaming setup, with our most advanced SDI/HDMI encoder.

$2,995 + BoxCast Streaming Plan

State-of the art video

With 1080p60 capability, our BoxCaster Pro streaming encoder captures up to twice as many frames per second. This high frame rate ensures your live video is like butter — ultra smooth — and enhances your viewer experience.

Lower bandwidth. Highest quality.

The Pro comes equipped with High Efficiency Video Coding (aka HEVC, or H.265). HEVC cuts your bandwidth in half and lets you encode your video in the highest quality This elevates your content and conveys a polished, tech-savvy image to your audience.

Easy event automation

Save time by using our most advanced encoder to schedule future events and automatically multistream from the BoxCast Platform to wherever your viewers are watching. Our automated technology makes sure your broadcasts begin on time, so you can focus on more important production matters.

Advanced streaming made simple

Our patented, top-tier live stream encoder box makes professional-level live streaming easy. The Pro seamlessly fits into your production workflow and lets you schedule, preview, simulcast, and monitor your broadcasts. All you need is internet and a BoxCast plan!



Works with your live streaming equipment

Whether you use a single-cam feed or a complex video switcher streaming setup, our flexible BoxCaster Pro can connect with SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, or 12G-SDI, as well as both HDMI 1.0 and 2.0. Additionally, the HDMI pass-through and SDI loop outputs allow you to monitor or locally record the input signals.

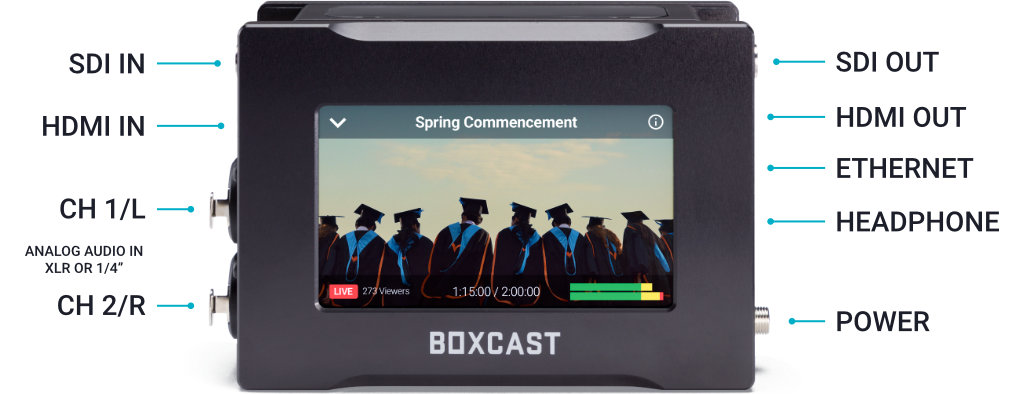

BoxCaster Pro inputs and outputs

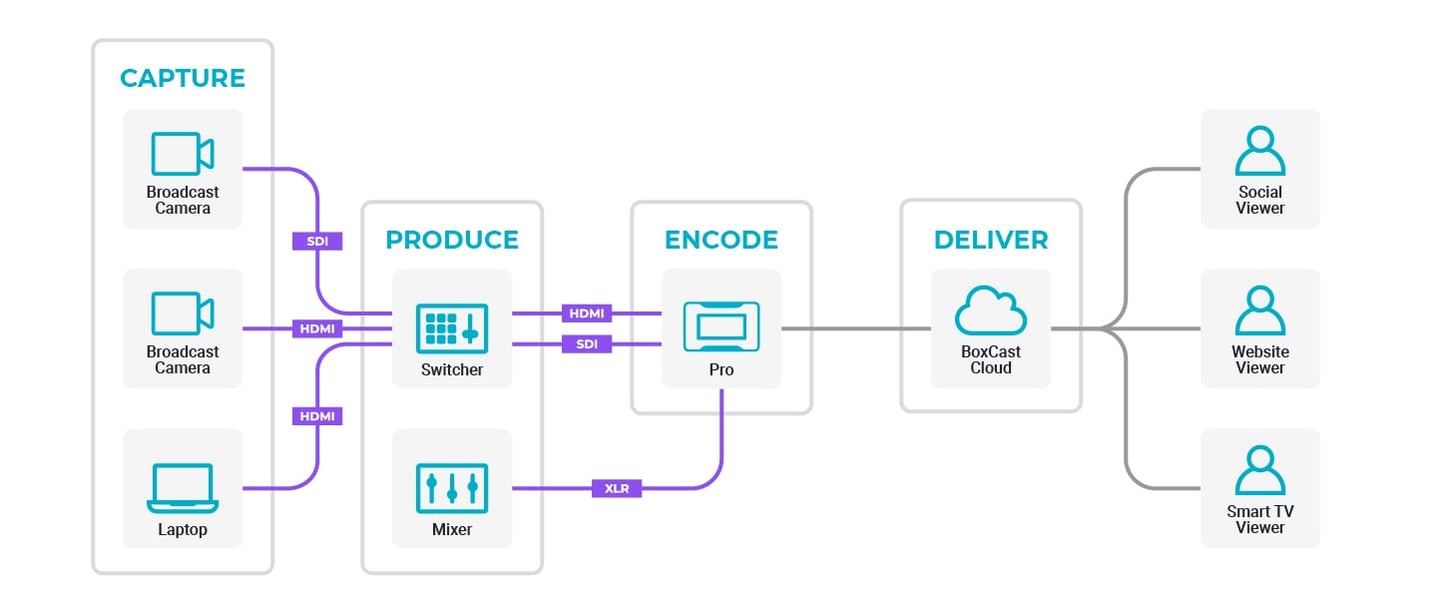

BoxCaster Pro - Multi Cam

Produce professional, multi-cam streams with your BoxCaster Pro and virtually any video switcher and soundboard. Send video up to 4K60 via HDMI or SDI to the Pro and mix audio separately via your soundboard. Connect any audio source with an XLR or ⅛″ output. Use the Pro’s audio inputs to phantom power devices and control gain on your audio sources.

Ideal For

Large-scale video productions including sports, house of worship services, news, and industry events



Connect with a streaming pro

Not sure if the BoxCaster Pro or the BoxCaster is the right encoder for streaming? Turn to our knowledgeable streaming coaches. They’re here seven days a week, and are happy to help answer whatever questions you might have via chat, email, or phone.

Monday – Saturday: 9 a.m. – 9 p.m. EST
Sunday: 7 a.m. – 9 p.m. EST

Customer support talking on the phone

Tech specs

Video and Audio

Video Input: HDMI 2.0a, SD/HD/3G/6G/12G-SD
Audio Input: SDI, HDMI, Analog
Encoding: H.265, main profile (HEVC)
Video Output: HDMI 2.0a Pass Through, SD/HD/3G/6G/12G-SDI Loop Out
Audio Output: 3.5mm Stereo Jack, SDI, HDMI
Streaming Quality: Up to 1080p60

Video and Audio

Video Input: HDMI 2.0a, SD/HD/3G/6G/12G-SD
Video Output: HDMI 2.0a Pass Through, SD/HD/3G/6G/12G-SDI Loop Out
Audio Input: SDI, HDMI, Analog
Audio Output: 3.5mm Stereo Jack, SDI, HDMI
Encoding: H.265, main profile (HEVC)
Streaming Quality: Up to 1080p60

Networking and Power

IP Address: Assignment via DHCP
Hardline: 10/100/1000 BASE-T ethernet
Wireless: 802.11 AC/A/B/G/N 2x2 MIMO
Firmware: Automatically updates

Networking and Power

IP Address: Assignment via DHCP
Wireless: 802.11 AC/A/B/G/N 2x2 MIMO
Hardline: 10/100/1000 BASE-T ethernet
Firmware: Automatically updates

Physical Characteristics

Dimensions: 3.87" W x 5.46"D x 2.41"H
Temperature: 0 to 40 C°
Weight: 1 lb 14.5 oz
Case: Machined, aircraft aluminum body Hard anodized black finish
Humidity: 0% to 90% non condensing

Physical Characteristics

Dimensions: 3.87" W x 5.46"D x 2.41"H
Weight: 1 lb 14.5 oz
Temperature: 0 to 40 C°
Case: Machined, aircraft aluminum body Hard anodized black finish
Humidity: 0% to 90% non condensing

Power

Input: 12VDC @ 5A supply with threaded, locking barrel jack
Input: USB-C port for Power Delivery and BoxCast Scoreboard Assist

Power

Input: 12VDC @ 5A supply with threaded, locking barrel jack
Input: USB-C port for Power Delivery and BoxCast Scoreboard Assist


Ready to buy a BoxCaster Pro?

The BoxCaster Pro is a one-time purchase that works with any paid BoxCast subscription plan. If you’re not already a subscriber, try a streaming plan free for 14 days — no credit card or commitment required.

Just in case you don’t love it, we offer a 30-day, money-back guarantee on our BoxCaster Pro and streaming plans. So … what are you waiting for?

Contact Sales
