BoxCaster Live Streaming Video Encoder

Broadcast high-quality, HD video with our portable yet powerful video encoder.

$399 + BoxCast Streaming Plan

Quality you can count on

Stream dependable, live HD video without compromising quality or security. BoxCast Flow, our built-in signature streaming protocol, ensures flawless, pro-quality broadcasts — even with an imperfect internet connection.

Easy streaming setup + scheduling

All you have to do is connect your BoxCaster to the internet and use our web-based Dashboard or Broadcaster app for iOS. From there, you can schedule recurring events to have the BoxCaster automatically stream on its own for each broadcast.

Convenient streaming from anywhere

Our pocket-sized live streaming encoder lets you broadcast on the go from anywhere with an internet connection to virtually everywhere your viewers are watching. Stream to your website, Facebook, YouTube, Twitter, and more!

Advanced streaming made simple

Our patented, little live stream encoder box makes high-quality broadcasting super easy. Just plug in power, internet, and a camera, and you’re ready to stream the crisp live video your viewers deserve!



Works with your streaming equipment

Got cameras? Video switchers? Computers? Other gear? Whatever your streaming setup, our BoxCaster live streaming encoder works with composite and HDMI sources, and captures audio via HDMI or RCA. All you need is internet and a BoxCast plan!

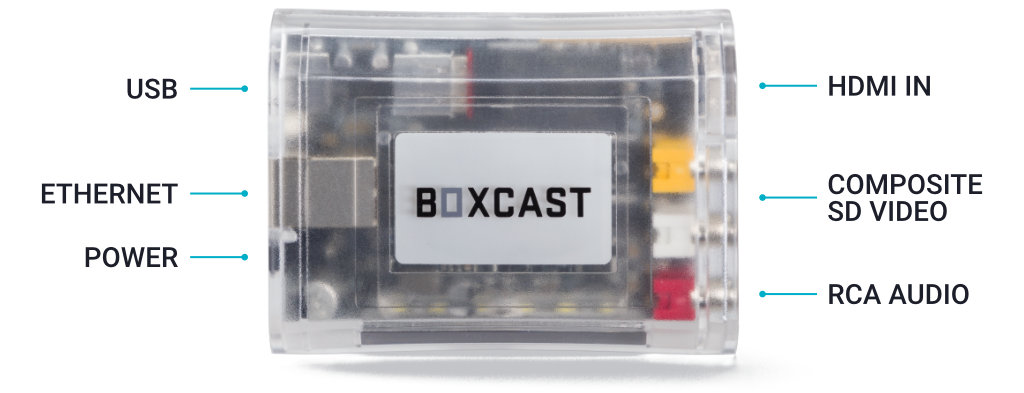

BoxCaster inputs and outputs

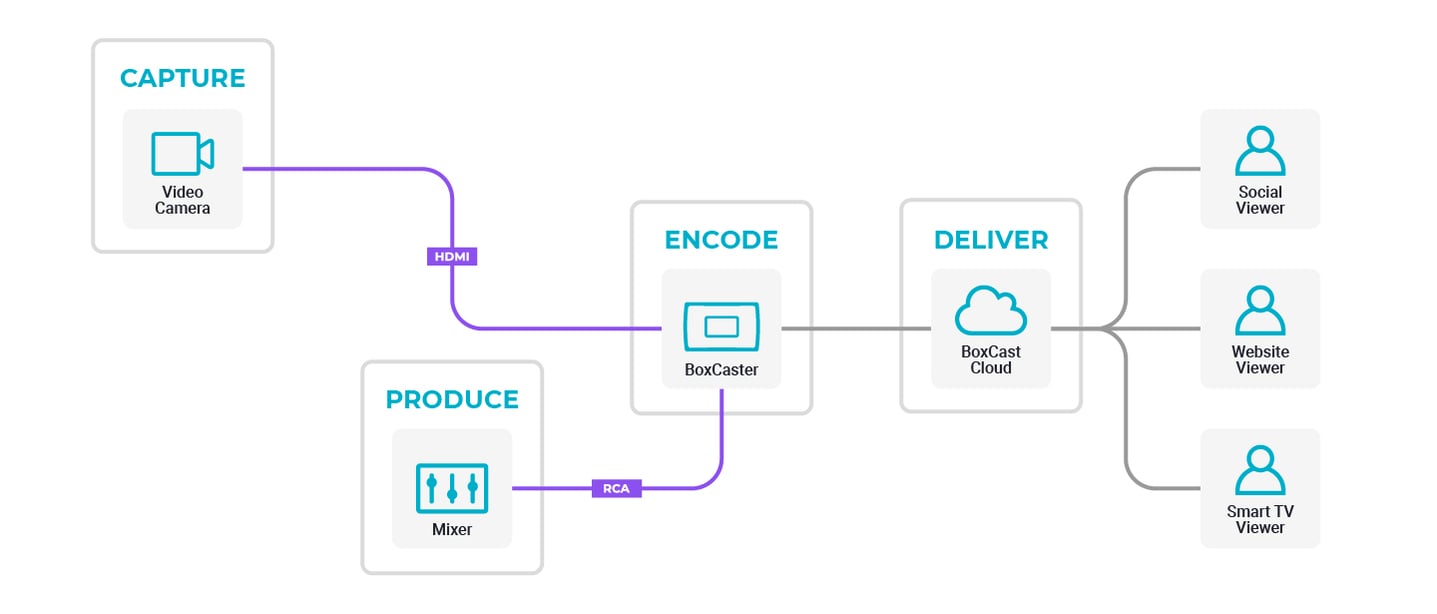

BoxCaster - Single Cam

This simple setup lets you mix in high-quality sound from a soundboard, instrument, microphone, or broadcaster headset with one camera. The BoxCaster’s RCA inputs allow you to send a separate feed from your audio source and mute the embedded audio from the HDMI feed on your camera.

Ideal For

Worship services, sporting events, city council meetings, and school performances from a fixed vantage point

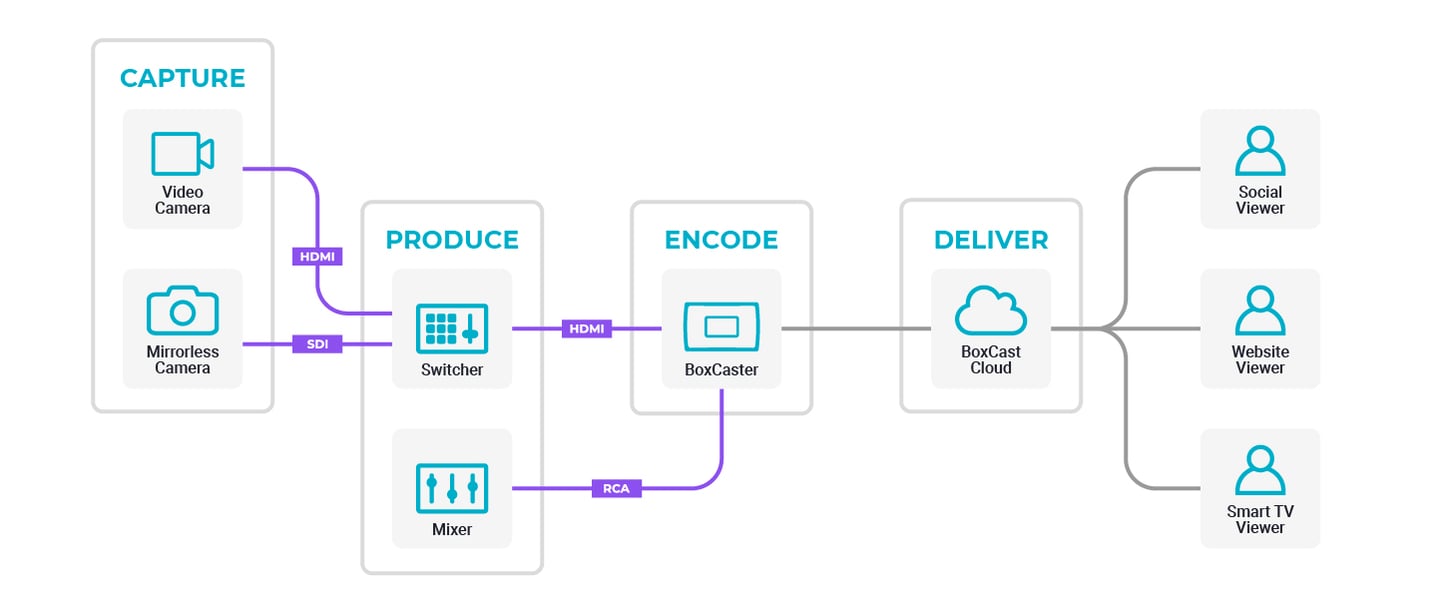

BoxCaster - Multi Cam

Connect any video switcher to your BoxCaster with an HDMI or SDI output using an HDMI to SDI converter. Send a separate feed from your audio source, and mute the embedded audio from the HDMI feed on your camera so you can combine your program video feed with your mixed audio.

Ideal For

Worship services, sporting events, musical, and theater performances featuring a variety of viewing angles and enhanced audio



We’ve got your back

Whether you’re just getting started or have a super-technical question about encoders for live streaming, our savvy Support team is here to help seven days a week via chat, email, or phone.

Monday – Saturday: 9 a.m. – 9 p.m. EST
Sunday: 7 a.m. – 9 p.m. EST

Customer support talking on the phone

Tech specs

Video and Audio

HDMI Input: 480i to 1080p60
Streaming Quality: Up to 1080p30
Encoding: H.264 high profile, level 4.2
RCA Input: Composite (NTSC/PAL)
Audio Input: HDMI, RCA stereo (48 kHz)
Audio Compression: AAC-LC

Video and Audio

HDMI Input: 480i to 1080p60
RCA Input: Composite (NTSC/PAL)
Streaming Quality: Up to 1080p30
Audio Input: HDMI, RCA stereo (48 kHz)
Encoding: H.264 high profile, level 4.2
Audio Compression: AAC-LC

Networking and Power

IP Address: Assignment via DHCP
Hardline: 10/100 BASE-T ethernet
Firewall: No configuration needed
Wireless: 802.11 a/g/n Wi-Fi
MAC Address: Uniquely assigned
Firmware: Automatically updates

Networking and Power

IP Address: Assignment via DHCP
Wireless: 802.11 a/g/n Wi-Fi
Hardline: 10/100 BASE-T ethernet
MAC Address: Uniquely assigned
Firewall: No configuration needed
Firmware: Automatically updates

Physical Characteristics

Dimensions: 4.34" W x 3.06" D x 0.94" H
Temperature: 0 to 70+ C°
Case: Rugged semitransparent plastic
Weight: 0.5 lbs
Humidity: 0% to 90% non condensing

Physical Characteristics

Dimensions: 4.34" W x 3.06" D x 0.94" H
Weight: 0.5 lbs
Temperature: 0 to 70+ C°
Humidity: 0% to 90% non condensing
Case: Rugged semitransparent plastic

Power

Input: 9 to 24V DC
Consumption: 5 to 10W (with USB accessories)

Power

Input: 9 to 24V DC
Consumption: 5 to 10W (with USB accessories)


Ready to buy a BoxCaster?

The BoxCaster is a one-time purchase that works with any paid BoxCast subscription plan. If you’re not already a subscriber, try a streaming plan free for 14 days — no credit card or commitment required.

Just in case you don’t love it, we offer a 30-day, money-back guarantee on our BoxCaster and streaming plans. So … what are you waiting for?
