HDMI vs. SDI Encoder: Encoders Explained and Evaluated

When choosing between HDMI vs SDI encoders for live video streaming, the right answer depends on your workflow, gear, and goals. In this guide, we’ll compare HDMI and SDI across physical design, technical specs, and real-world encoder applications to help you pick the best setup for your broadcast needs.

Table of Contents

Physical Cable Differences
Video Signal Differences
Encoder Input Differences
Final Thoughts

Physical Cable Differences

Back in the ’80s, Olivia Newton-John famously sang, “Let’s get physical.” While our topic—HDMI and SDI cabling—is far less risqué, we’ll approach it with similar enthusiasm, starting with the physical differences between these cables before exploring their graphical capabilities.

Range + Resolution

Let’s start with distance. HDMI cables can reliably run up to about 50 feet and while you technically can purchase HDMI cables up to 100 feet, the signal tends to be way less reliable at distances past 50 feet.

SDI cables, on the other hand, can stretch nearly 20 times farther — up to 1,000 feet in some cases. That being said, higher-resolution formats like HD-SDI shorten that reach to around 330 feet. More on this later, but the reason for this shortened range is due to the increased data rate that is sent across SDI cabling to achieve higher quality video.

Durability + Flexibility

Long cable runs demand durability, and SDI delivers. Its thick shielding and locking BNC connectors help protect the signal and prevent accidental disconnections, making it a staple in more rugged or professional setups. HDMI connectors, while common and convenient, aren’t built with the same level of physical security.

SDI is also easier to work with over long distances. Its construction allows for more flexibility, so it coils neatly and resists tangling. HDMI, by contrast, can be stiff and unwieldy in longer lengths, making it harder to manage and more prone to kinks or knots.

What's On the Inside

Let’s go a little deeper into the physical differences between HDMI and SDI cabling. From an engineering standpoint, cables move electrons from point A (input) to point B (output). HDMI does this with four pairs of wires running in parallel, each carrying two opposite versions of the same signal to help articulate the signal you want and to cancel out any unwanted signal noise.

SDI cabling takes a different route with only a single wire to carry all data in an ordered sequence. The higher the resolution and frame rate, the faster the single wire has to push bits to keep up. This makes SDI engineering more demanding, ensuring that cable construction and connector quality are precise for flawless transmission of audio and video over long distances.

Put differently, because HDMI uses parallel connections, you can send multiple pieces of data at the same time, kind of like a 3 lane highway moving multiple cars along the same section safely. SDI is more like a single lane road that allows for much faster driving. Multi-link SDI introduces parallel “lanes” for data transmission, but we’ll get to that later.

Stretching Your Dollar

Cost is a key difference worth noting, and it relates directly to the differing level of engineering required to construct high performing cables, based on what is shared above. A quick Amazon search shows that the average price for the first five HDMI cables listed is around $12.39 each, while the same number of HD-SDI cables average over $37.47 per unit. That’s more than triple the price — a trade-off for length, reliability, and precise engineering requirements.

Overall, if you need lengthy, durable cable runs, SDI is the front-runner so far. But if you’re prioritizing affordability and working with shorter distances, HDMI can safely be your go-to for now.

Video Signal Differences

Before we compare different encoders, let's take a moment to look at how these cable formats handle video. At first glance, both SDI and HDMI can deliver excellent HD signals. But once you factor in frame rates, resolution limits, differing formats, and multi-link connectivity, the differences start to stand out.

Let’s begin with HDMI since it’s the more straightforward option.

HDMI: Simple to Use, Easy to Upgrade

One of HDMI’s biggest advantages is its simplicity—there have only been three major versions so far, and most live streaming workflows only ever use the first two. If your cable or encoder tops out at 60fps or 4K video, you’re set with HDMI 2.0. While HDMI 2.1 adds some impressive new capabilities, version 2.0 is more than enough for most streaming setups.

Here’s how the HDMI spec has progressed over time:

• HDMI 1.4 supports 4K at 30fps
• HDMI 2.0 increases that to 4K at 60fps and adds HDR
• HDMI 2.1 pushes things further with 4K at 120fps, 8K at 60fps, and features like Variable Refresh Rate (VRR), Enhanced Audio Return Channel (eARC), and Auto Low Latency Mode (ALLM)

For example, if you have a 1080p 30fps setup and an encoder with an HDMI 2.0 input, you can later upgrade to 4K 60fps streaming without replacing your encoder—or your cable. This is one of HDMI’s strengths: in many cases, you can improve your video quality without overhauling your hardware, keeping upgrades simple and hassle-free.

SDI: Built for Broadcast, with a Bit More Complexity

SDI is a little more intricate. It’s been around since 1983, and has evolved to meet the demands of professional broadcast environments. HDMI, by comparison, is the younger and more consumer-friendly standard, introduced in 2002. Put differently, SDI is Gen X while HDMI is Gen Z, so they’re built a little differently and have different priorities.

There are multiple SDI formats, each designed for specific resolutions and bitrates. Here’s a breakdown:

Note: As the above chart implies, as resolution increases, cable length decreases unless signal boosters or repeaters are used. This is a good segue into Multi-Link SDI, a key concept for understanding how SDI can move high-resolution data for your stream.

What is Multi-Link SDI?

Multi-Link SDI is a technique that uses two or more SDI cables together to increase total bandwidth and allow for higher-resolution video. To bring back the highway analogy, it’s similar to adding extra lanes to a highway to let more traffic through at once.

Before 6G and 12G SDI were introduced, Multi-Link setups were often the only way to carry 4K SDI signals. Today, this approach is less common, but still used in certain workflows and legacy systems, and can certainly help extend the range of SDI cabling without compromising quality.

A Clear Winner?

Overall, both HDMI and SDI can deliver excellent video quality, but they get there in very different ways. HDMI is simpler and more consumer-friendly, making it easy to integrate into most setups. SDI, on the other hand, has been the professional standard for decades, offering greater flexibility and customization to meet the exact needs of live or broadcast environments. There’s no universal winner — it ultimately comes down to your specific goals, space, and workflow.

Encoder Input Differences

Live streaming encoders are the first step in transforming raw audio and video into a format that can be broadcast online. It’s a simple concept, but a critical step. The best encoders compress your signal into a clean, consistent stream that travels through the live video pipeline and ultimately reaches your audience.

So here’s the real question: Should you use an HDMI or SDI encoder for your setup? And what are the pros and cons of each?

As with most things in tech (and in life), there’s no one-size-fits-all answer. But thankfully, most encoder manufacturers build their products with a clear user in mind. Professional broadcast encoders usually feature SDI or HD-SDI inputs, because those are the standards used by higher-end cameras and video switchers in that space.

Meanwhile, consumer and prosumer encoders tend to offer HDMI inputs, knowing that affordable, widely available cameras rely on HDMI connectivity.

What's the best way to choose? Start with the gear you're already using or planning to invest in. If your setup is built around HDMI devices, an HDMI encoder is the clear choice. Likewise, if you're using SDI gear, an SDI encoder makes the most sense.

Other factors can also influence your decision. Cable length, total cost, and environmental durability might matter more depending on your production style. While there are hybrid encoders with both HDMI and SDI inputs, most streamers fall into one camp or the other — and don't need to pay extra for inputs they’ll never use.

Final Thoughts

At the end of the day, the decision between HDMI and SDI encoders comes down to your existing equipment and how you plan to use it. If you’re running longer cables, working in a professional broadcast environment, or need rugged connectors with ultra-low latency, SDI is often the right choice. But if you’re a solo creator, small team, or anyone working with consumer gear, HDMI offers excellent quality, easier integration, and a more budget-friendly path to high-resolution streaming.

There’s no wrong answer — just the right match for your workflow. Whether you're upgrading your encoder, building your first live stream rig, or just trying to understand the differences between SDI and HDMI, the key is to let your gear, goals, and budget guide the way. And if you're still unsure, start with the camera you’re using — it often tells you exactly what kind of encoder you need.

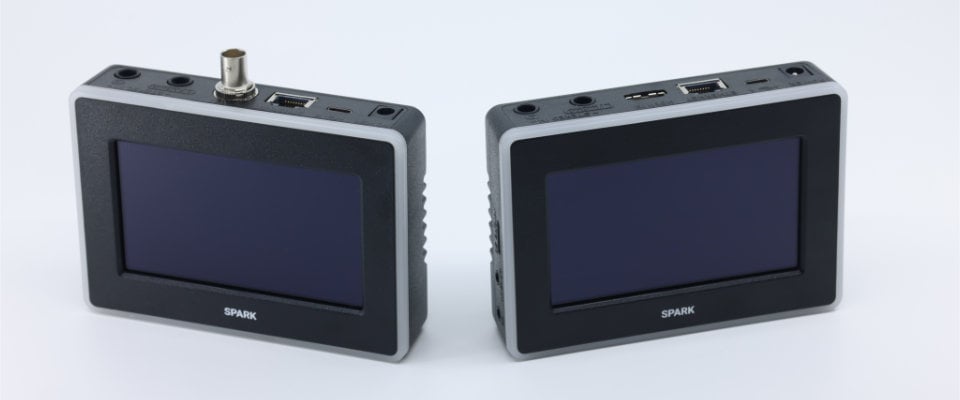

Learn more about our Spark encoder, with both HDMI and SDI Input Options
